Cement Mill

Introduction

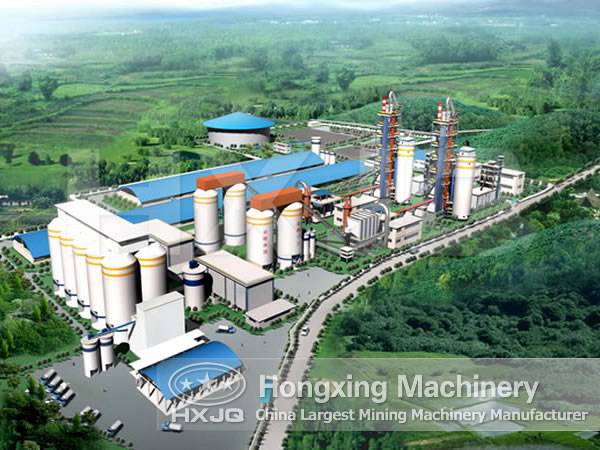

Cement is the important basic material in development of national economic, and cement industry is a significant symbol of economic development and general strength. Cement mill is widely used for grinding in cement plant, and it plays an important role in the production of cement. Moreover, cement ball mill is also applied to ore and grindable materials in metallurgy, electronics, chemical industry. So a cement grinding mill is an essential device in your factory.

The Classification of Cement Mill

Cement mill can be divided into cement ball mill and cement grinding mill:

1. Cement ball mill: it is used in circle grinding system, and it features high efficiency, high output and low energy consumption, especially in the blast furnace slag cement.

2. Cement grinding mill: it is used in open stream grinding system, and it features simple structure, low investment, small space and high efficiency.

Welcome to our company for a visit and you can leave messages or email to: crusher@hxjq.com. We can provide 24 hours service for you!

Features

Advantages of Hongxing Cement Mill

1. Hongxing has many kinds of cement grinding machines: large-scale cement mill, small and medium size cement ball mill, dry grid type cement grinding mill, wet grid type cement grinding machine and coal ball mill.

2. Hongxing cement mill features adaptability, continuous production, high crushing ratio and adjustable fineness of particle. Cement ball mill can process dry production and wet production, moreover, grinding and drying are arranged for simultaneous work.

3. Hongxing Machinery passed the authentication of China Certification & Inspection Group Quality Certification Co., Ltd. in April, 2005 and got ISO9001:2000 Quality Management System Authentication Certificate.

Principle

Materials evenly go from the feeder machine into the first cabin of the powder grinding mill through the feeder hollow shaft spiral, and inside the first cabin, there are ladder-shaped lining boards or ripple-shaped lining boards with steels balls of different specifications in them. The rotation of the cylinder will produce centrifugal force to bring the steel balls to a certain height, and then the steel balls will fall down, which will have impact and grinding effect on the materials. After being coarsely ground in the first cabin, the materials will go into the second cabin through the single-deck partition board, and inside the second cabin there are slat lining boards inside which there are steel balls used for further grinding the materials. Finally the powdery materials will discharged through the discharging grating bar to complete the powder grinding process.

Parameters

Product specification (m)	Milling form	Transmission form	Gear box		Motor power (kw)	Production capacity (t/h)	Total weight (t)
			Model	Speed reduction ratio
Φ1.83×7	Open flow	Brim	ZD60	4.5	245	6.5-8	43.8
Φ2.2×7.5	Open flow	Brim	ZD70	5	380	8-10	64.8
Φ2.2×11	Open flow	Brim	D110	35.5	630	12-13	104.6
Φ2.2×13	Open flow	Brim	D110	35.5	630	16-18	114
Φ2.4×13	Open flow	Brim	D110	35.5	800	20-23	130.6
Φ2.6×13	Open flow	Brim	MFY100	19.5	1000	28-32	158
Φ3×9	Circle flow	Brim	D125	41.2	1000	28-36.5	167
Φ3×11	Circle flow	Brim	D140	42.8	1250	36-47	180
Φ3.2×13	Open flow	Brim	D140	36.5	1600	45-50	225
Φ3.5×13	Circle flow	Brim	JDX1000	5.84	2000	60-65	275
Φ3.8×13	Open flow	Central shaft	MFY250	16.5	2500	60-62	320
Φ4.2×13	Open flow	Central shaft	JQS3550	15.6	3530	85-87	380
Φ4.6×14	Circle flow	Central shaft	JSI160-C	14.6	4200	120-135	485
