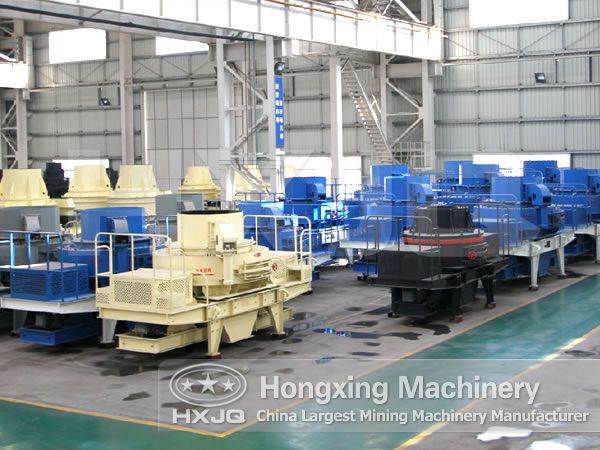

Sand Making Machine

Introduction

Sand making machine is also called vsi sand maker, which is the most common equipment in mining industry. Otherwise, the machine has unmatched crushing effect in cement, refractories, aluminum, emery, glass, mechanism building sand, abrasion resistance material and so on.

Sand Maker Plays Important Role in Other Industries

Engineering:

Sand making machinery is the ideal equipment for producing sand, cushion material, asphalt concrete and cement concrete.

Mining:

Sand making machines is widely used in grinding anterior process, and it can produce a lot of powder grinding, so as to reduce the high cost of grinding the load.

Crushing production:

Sand making machine has good wear-resistance and it is adopted by crushing disintegration production.

In addition, because of zero pollution in the producing, vsi sand maker can be used in the production of quartz sand and other high purity materials. Its production capacity reaches 10-500t/h, which can meet any production requirements.

If you want to know more information, please leave a message or email to crusher@hxjq.com.

Features

1. Hongxing sand making machinery has selective crushing ability and high crushing ratio. It has been widely accepted by many customers.

2. Hongxing Machinery passed the authentication of China Certification & Inspection Group Quality Certification Co., Ltd. in April, 2005 and got ISO9001:2000 Quality Management System Authentication Certificate. Hongxing sand making machine has been exported to more than 30 counties.

3. Hongxing sand making machines have three types: HX、VSI、TK. Hongxing can also provide personalized machine in accordance with your requirements.

Principle

The materials go into artificial sand maker from the feed hopper and are separated into two parts by the distributor. One part goes into the impeller rotating with high speed from the middle of the distributor, and is quickened inside the impeller, and the acceleration can reach hundred times of the acceleration of gravity, and then the materials will cast from the three uniformly distributed runners of the impeller at a speed of 60-70m/s, and impact and crush with the other part of materials which fall from around the distributor and then they will together impact to the material lining inside the vortex cavity. Bounced from the material lining, the materials will impact obliquely upward to the top of the whirling motion chamber which will change their movement direction again, so that materials will move down, and the materials launching from the runners of the impeller will form a continuous material curtain. In this way, the materials will get two times or more hitting, friction, grinding and crushing effect inside the whirling motion crushing chamber. The crushed materials will be discharged from the bottom discharging mouth.

Parameters

Model  specification	Max.feeding  size （mm）	Power （kw）	Rotation  speed of  impeller （r/min）	Capacity （t/h）	Overall  dimension （L×W×H） （mm）
HX-06	35	2P   37-55KW	2000-3000	10-30	2500×1620×2600
HX-07	45	4P   55-75KW	1500-2500	20-55	2700×1760×2800
