Cone Crusher

Introduction

With the technological development of mining equipment, Hongxing Machinery Group researched and developed cone crusher on the basis of digestion and absorption international advanced level. Cone crusher can be divided into compound cone crusher, spring cone crusher, hydraulic cone crusher, Symons cone crusher and single cylinder cone crusher, suitable for fine crushing and super fine crushing of hard rock, ore, slag, etc.

Advantages of Different Cone Crushers

Compound cone crusher:

Compound cone crusher enjoys the best combination of crushing frequency and eccentricity, making more fine finished materials, and with high breaking capacity compared with similar models. Hydraulic insurance, hydraulic lock, hydraulic adjustment and hydraulic cleaning device make cone crusher easier to automation. Under normal circumstances, the failure rate of Hongxing cone crusher with optimized design is less than 5%.

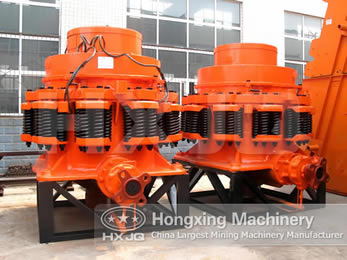

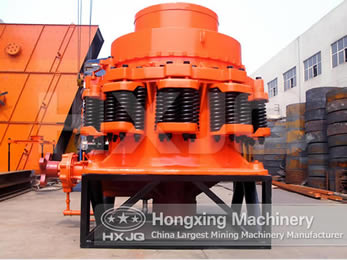

Spring cone Crusher:

The spring insurance system of cone crusher is overload protection device of crushing chamber, unique sealing system separates the stone powder and lubricating oil, so as to ensure stable and reliable work of spring cone crusher.

Single cylinder cone crusher:

It is with simple and compact structure, strong crushing capacity, stable and reliable performance, low failure rate, convenient maintenance and low production costs.

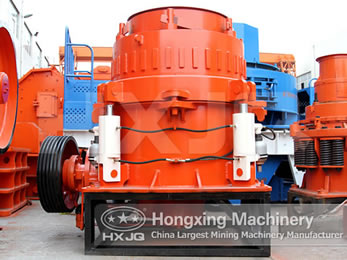

Hydraulic cone crusher:

Compared with other types of cone crushers, hydraulic cone crusher not only has higher productivity and efficiency, but also has a broader scope of application, so it can be used for general crushing, fine crushing and super fine crushing, with unparalleled crushing effect.

Hongxing Cone Crusher Is Your Best Choice

In response to the development of low carbon economy and new energy, Hongxing Machinery Group continuously works hard to improve the productivity and reduce energy consumption of its cone crushers, promoting the structural adjustment of crusher industry and mining industry. Hongxing Machinery establishes and holds its brand image by increasing product technology and quality and service levels. Hongxing cone crushers can be designed according to customers’ needs, and the price is fair and reasonable. Hongxing is undoubtedly the best choice for you.

If you are interested in Hongxing cone crushers or have any questions, please leave us a message or send an email to:crusher@hxjq.com, thank you for visiting our website!

Features

Cone crusher is applied to break all kinds of minerals and rocks with the compressive strength below 250MPa and all those hard and medium hard materials in the mining, metallurgy, building materials and chemical industries. It is made the best use of to realize medium crushing and fine crushing in medium and small sized dressing plants. Cone crusher adopts the pushing type structure of jaw plate hanging on the axillare. Cone crusher has advantages of high production, the long service life of the toothed plate, lower energy consumption and regular particle size.

Principle

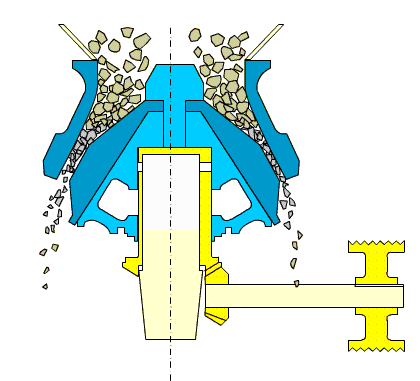

When cone crushers begin to work, the electro motor drives the eccentric sleeve through the spring coupling, drive shaft and a pair of angle gear, so that the crushing wall of cone crusher gets close to and then gets away from the surface of the rolling mortar wall fixed on the adjusting sleeve, and the ores inside the crushing chamber will be constantly impacted, squeezed and bent to be crushed.

Parameters

Specification	Model	Diameter  of large  end of  crushing  cone (mm)	Max.feeding  size(mm)	Width of  discharge  opening (mm)	Processing  capacity (t/h)	Motor  power (kw)	Total  weight （t）	Dimensions (L×W×H) （mm）
Φ600	PYB600	600	65	12-25	40	8P   30	5	2234×1370×1675
	PYD600		35	3-13	12-23		5.5	2234×1370×1675
Φ900	PYB900	900	115	15-50	50-90	8P   55	11.2	2692×1640×2350
	PYZ900		60	5-20	20-65		11.2	2692×1640×2350
	PYD900		50	3-13	15-50		11.3	2692×1640×2350
Φ1200	PYB1200	1200	145	20-50	110-168	8P   110	24.7	2790×1878×2844
	PYZ1200		100	8-25	42-135		25	2790×1878×2844
	PYD1200		50	3-15	18-105		25.3	2790×1878×2844
Φ1750	PYB1750	1750	215	25-50	180-360	8P   160	50.3	3910×2894×3809
	PYZ1750		185	10-30	80-210		50.3	3910×2894×3809
	PYD1750		85	5-13	60-180		50.2	3910×2894×3809
Φ2200	PYB2200	2200	300	30-60	420-700	8P   280-260	80	4622×3302×4470
	PYZ2200		230	10-30	130-410		80	4622×3302×4470
	PYD2200		100	5-15	80-200		81.4	4622×3302×4470
