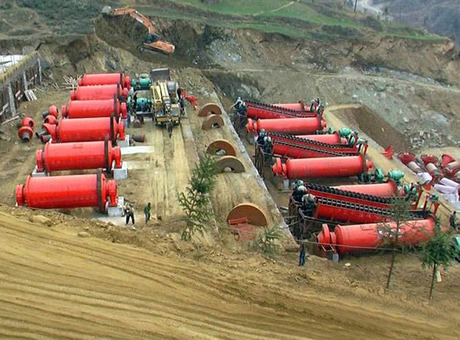

Ball Mill

Introduction

Ball mill becomes the core equipment for grinding after the materials have been crushed. It has been widely used for crushing, grinding and pelleting many kinds of materials, such as mining, cement, silicate products, new building materials, refractory materials, fertilizer, ferrous and non-ferrous metal beneficiation and glass ceramic and so on.

Ball mills include feeder, discharger, rotary portion and transmission division (reduction gears, pinion gear, motor, electrical control).

Ball mill machine can be classified into dry ball mill and wet ball mill. During the running of wet ball mill, some water and liquid should be added in materials to increase liquidity and production capacity. When you use dry ball mill, liquidity is reduced and production capacity is affected. So an air-inducing device should be installed at the discharger of ball mill. By this way, negative pressure will be produced in the cylinder of ball mill to increase liquidity and production capacity.

Three Methods of Improving the Output of Ball Mill:

1. Installing a fine crusher in ball mill;

2. Improving milling system of ball mill to increase grinding efficiency;

3. Installing high efficiency separator.

The Application of Ball Mill in Ore Beneficiation Process:

Ball mill is widely used in mine enterprises, like gold, copper, iron ore, phosphate rock, lead, zinc and germanium ore. Raw mineral will be send to ball mill after reasonable crushed. Then materials will be crushed and grinded by ball mills. At last, the ore fines will be expected to enter the next process: classification.

The Application of Ball Mill in Concrete Equipment:

Coal ash (or sand and mountain flour) is crushed and grinded to required granularity. Then the finished materials can be sent to store in the paint pot.

Features

Performance Features of Ball Mill:

1. High capacity, widely application and continuous operation;

2. Liner plate; many materials can be used as grinding media, which features high abrasion resistance and corrosion resistance;

3. Smooth operation, reliable working;

4. Good seal, no dust;

5. Dry and wet operation, combining drying and grinding.

Principle

Materials evenly go into the first cabin of the ball mill machine through the feeder machine, and inside the first cabin, there are ladder lining boards or ripple lining board in which there are many steel balls with different specifications. The cylinder rotates and produces eccentric force to bring the steel balls to a certain height, and then the steel balls will fall down to impact and grind the materials. After being coarsely ground in the first cabin, the materials will go through the single-layer partition board and into the secondary cabin in which there are flat lining board, and in the lining board there are steel balls to further grind the materials. Finally the powdery materials will be discharged from the discharging grating bar to complete the powder grinding process.

Parameters

Model	Shell rotation speed （r/min）	Ball load (t)	Feeding size (mm)	Discharging size (mm)	Capacity (t/h)	Motor power (kw)	Total weight (t)
Ф900×1800	36-38	1.5	<20	0.075-0.89	0.65-2	18.5	5.85
Ф900×3000	36	2.7	<20	0.075-0.89	1.1-3.5	22	6.98
Ф1200×2400	36	3	<25	0.075-0.6	1.5-4.8	30	13.6
Ф1200×3000	36	3.5	<25	0.074-0.4	1.6-5	37	14.3
Ф1200×4500	32.4	5	<25	0.074-0.4	1.6-5.8	55	15.6
Ф1500×3000	29.7	7.5	<25	0.074-0.4	2-5	75	19.5
Ф1500×4500	27	11	<25	0.074-0.4	3-6	110	22
Ф1500×5700	28	12	<25	0.074-0.4	3.5-6	130	25.8
Ф1830×3000	25.4	11	<25	0.074-0.4	4-10	130	34.5
Ф1830×4500	25.4	15	<25	0.074-0.4	4.5-12	155	38
Ф1830×6400	24.1	21	<25	0.074-0.4	6.5-15	210	43
Ф1830×7000	24.1	23	<25	0.074-0.4	7.5-17	245	43.8
Ф2100×3000	23.7	15	<25	0.074-0.4	6.5-36	155	45
Ф2100×4500	23.7	24	<25	0.074-0.4	8-43	245	56
Ф2100×7000	23.7	26	<25	0.074-0.4	12-48	280	59.5
Ф2200×4500	21.5	27	<25	0.074-0.4	9-45	280	54.5
Ф2200×6500	21.7	35	<25	0.074-0.4	14-26	380	61
Ф2200×7000	21.7	35	<25	0.074-0.4	15-28	380	62.5
Ф2200×7500	21.7	35	<25	0.074-0.4	15-30	380	64.8
Ф2400×3000	21	23	<25	0.074-0.4	7-50	245	58
Ф2400×4500	21	30	<25	0.074-0.4	8.5-60	320	72
Ф2700×4000	20.7	40	<25	0.074-0.4	22-80	380	95
Ф2700×4500	20.7	48	<25	0.074-0.4	26-90	480	102
Ф3200×4500	18	65	<25	0.074-0.4	As per process conditions	630	149
Ф3600×4500	17	90	<25	0.074-0.4	As per process conditions	850	169
Ф3600×6000	17	110	<25	0.074-0.4	As per process conditions	1250	198
Ф3600×8500	18	131	<25	0.074-0.4	45.8-256	1800	260
Ф4000×5000	16.9	121	<25	0.074-0.4	45-208	1500	230
Ф4000×6000	16.9	146	<25	0.074-0.4	65-248	1600	242
Ф4000×6700	16.9	149	<25	0.074-0.4	75-252	1800	249
Ф4500×6400	15.6	172	<25	0.074-0.4	84-306	2000	280
Ф5030×6400	14.4	216	<25	0.074-0.4	98-386	2500	320
Ф5030×8300	14.4	266	<25	0.074-0.4	118-500	3300	403
Ф5500×8500	13.8	338	<25	0.074-0.4	148-615	4500	525
