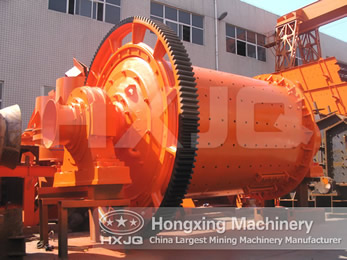

Rod Mill

Introduction

Rod mill is a kind of grinding equipment commonly used in mineral processing industry like ball mill, and it got its name by its grinding media-rod-shaped steel bar in its cylinder.

Rod grinding mill or rod grinder mill is widely used in metal and nonmetal mines, water conservancy, glass and building materials sectors, for grinding various ores, rocks, artificial sand and other materials with high requirement on product size. Therefore, rod mill can be used as A Class grinding mill in artificial sand, quartz sand, glass raw materials, artificial stone, mineral processing plants, chemical plants and other industries.

Applications of Rod mill:

1. Gravity or magnetic separation plant of tungsten, tin ore and other metals commonly use rod mill to grind materials in order to prevent the hazards of over crushing;

2. In some cases, rod mill can replace cone crusher to work as a fine crusher. When working with softer or less hard minerals (particularly sticky ore), rod mill is more suitable than cone crusher with short head.

3. Practice has proved that the rod mill has the ability to dry grinding wet material. Moreover, choosing the most appropriate lining plate can reduce the metal loss of raw materials.

Tips on the Installation of Rod mill:

1. Rod mill is usually installed on the plant or open airs;

2. Make an inventory according to packing list before installing the rod mill machine, check if any spare parts are damage and all spare parts are all in readiness.

3. Conduct a comprehensive inspection after installing the rod mill, especially to see if the lube tube is securely attached, refuel it before test running.

4. Check if all parts connections are solid and reliable, and whether there is foreign body on the impeller, if any, clear them. Check if the motor wiring is proper, and if the voltage is normal.

Features

Advantages of Grinding Rod Mill:

1. The rod mill is with large feeding size, and can grind minerals and ores with different hardness;

2. The high wear-resistant lining in rod mill is wear-resistant and with long service life;

3. The grinding rod mill has the ability to grind moist material in dry type;

4. It can save power, and not easy to be plugged;

5. Steel bars in the rod grinding mill move regularly, which helps to discharge grinded materials quickly;

6. Adjustable fineness, uniform particle size, less crushing problems.

7. Steel bars in the rod mill should be moderate according to the thickness of finished product, and wore steel bars are needn’t to be removed.

Principle

The electro motor drives the cylinder to rotate through the reduction gears and the peripheral rack wheel reducer transmission, or the low speed synchronous motor directly drives the cylinder to rotate through the peripheral rack wheel reducer transmission. Inside the cylinder, there are proper ore grinding media-steel rod. Under the eccentric force and frictional force, the ore grinding media are lifted to a certain height and fall down in the state of dropping. The materials to be ground continuously go into the cylinder from the ore feeding mouth and are crushed by the moving grinding media, and then are discharged by the overflow and the force of continuous feeding to go to the next procedure.

Parameters

Model	Shell Specifications （mm）		Shell rotation speed （r/min）	Feeding size (mm)	Discharging size (mm)	Processing capacity (t/h)	Power (kw)	Total weight (t)
	Diameter	Length
MBS0918	900	1800	36-38	≤25	0.833-0.147	0.62-3.2	18.5	5.9
MBS0924	900	2400	36	≤25	0.833-0.147	0.81-4.3	22	6.7
MBS1224	1200	2400	36	≤25	0.833-0.147	1.1-4.9	30	13.9
MBS1530	1500	3000	29.7	≤25	0.833-0.147	2.4-7.5	75	19.8
MBS1830	1830	3000	25.4	≤25	0.833-0.147	4.8-11.6	130	34.9
MBS2130	2100	3000	23.7	≤25	0.833-0.147	14-35	155	46.5
MBS2136	2100	3600	23.7	≤25	0.833-0.147	19-43	180	48.7
MBS2430	2400	3000	21	≤50	0.833-0.147	25-65	245	59.7
MBS2736	2700	3600	20.7	≤50	0.833-0.147	32-86	380	92.5
MBS2740	2700	4000	20.7	≤50	0.833-0.147	32-92	400	95
MBS3245	3200	4500	18	≤50	0.833-0.147	64-180	630	149
