Hammer Crusher

Introduction

Why Is Hammer Crusher So Popular?

Since the starting of crushing machine, hammer crusher is always the King of Crusher because its comprehensive and professional function. Hammer crusher machine is very welcomed, which is intimately related to its unique and extensive functionality including large reduction ratio, high capacity, low energy consumption and easy maintenance. In addition, hammer crusher can crush many kinds of materials and has no requirement on the humidity of raw materials.

Heavy Hammer Crusher

Heavy hammer crusher is a kind of widely used hammer crusher, and it’s the most advanced crushing equipment in hammer crusher series. Heavy hammer crusher can make disposable material molding, and it has the characteristics of high efficiency, energy saving and environmental protection.

Application of Hammer Crusher

Hammer Crusher can directly crush materials with the maximum size of 600-1800 mm to crushed materials with size of 25 mm or 25 mm. Hammer Crusher is suitable for industrial sectors such as cement, chemicals, electric power, metallurgy and so on to crush materials with medium-hard such as limestone, slag, coke, coal, etc. Both general crushing and fine crushing is available.

Factors Affecting the Quality of Hammer Crusher

Hammer is the core part of a hammer crusher, and the quality of the hammer and the location of the pin hole determine the crushing efficiency of hammer crusher. Hongxing hammer crusher is produced strictly according to the requirements of theoretical mechanics, even each product and each individual component are checked many times, to achieve a better crushing efficiency and long service life. Hongxing hammer crusher has fully satisfied the users’ needs in many areas, and Hongxing is looking forward to the cooperation with you. If you want to know more about our product or if you have more questions, please leave us messages or email us to: crusher@hxjq.com, we will contact you within one business day! Thank you for visiting our website!

Principle

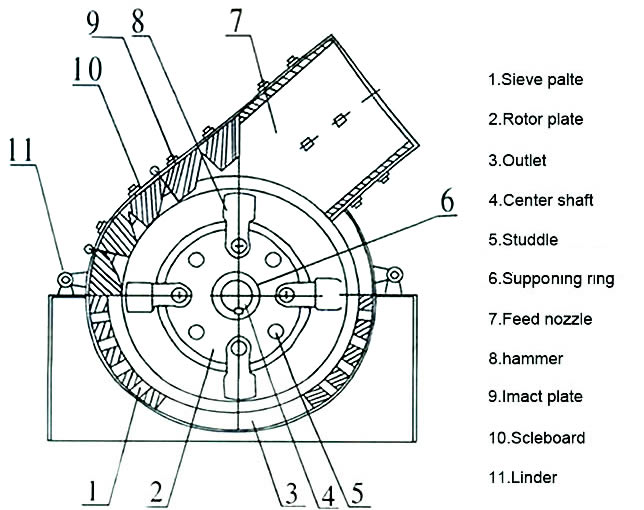

The materials are fed into the machine from the upper feeding mouth and are crushed under the hitting, impacting, cutting and grinding of the hammer which is moving with high speed. On the bottom of the rotor, there is sieve plate and the crushed materials that is smaller than the screen size are discharged from the sieve plate, and the coarse particles bigger than the screen size are retained on the sieve plate to be hit and ground again by the hammer and finally be discharged from the machine from the sieve plate.

Parameters

Specification	Capacity(t/h)	Power (kw)
PC 400×300	3-10	4P 11
PC 600×400	6-22	4P 22
PC 800×600	10-40	4P 55
PC 1000×800	15-50	4P 75
PC 1000×1000	18-75	4P 90
PC 1200×1200	22-95	4P 132

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
