This series impact crusher is able to process the materials whose length of a side is below 100~500mm and maximum compression strength is 350Mpa, and it has the advantages of big crushing chamber and that the crushed materials are in the form of cube, so that it is suitable for crushing medium hard materials.
GET PRICE
With the fast development of productive forces, demand for crushing technology has been increasing. Hongxing absorbs foreign advanced technology and develops the impact crusher on the foundation of jaw crusher. At the same time, Hongxing mobile impact crushing station provides great convenience to customers.
Impact crusher is the core device in mobile impact crushing plant and it is used as the secondly crushing equipment. Impact crusher is applied to mobility project, like metallurgy, chemical industry, building materials, water and electricity, highway, railway and so on. You can adopt suitable devices in accordance with species and scale of materials.
In order to ensure the normal working and prolong life span of the machine, you should make sure routine maintenance. You should carry out a full review at the end of operation in every day. Belt, bearing, motor and lubricating system are the main devices should be checked. Moreover, a regular maintenance system should be established.
If you have any problems about our impact crusher, please leave a message or send an email to: crusher@hxjq.com. Thank you for your supporting!!
(1) Compared to other crushers, rotor of impact crusher has greater power. The machine features low energy consumption.
(2) The speed of rotor and space between impact plate and milling chamber can be adjusted to meet different requirements of customers.
(3) When the rotor is running smoothly, materials will fall on the surface of plate hammer. So the back and flank will not be worn.

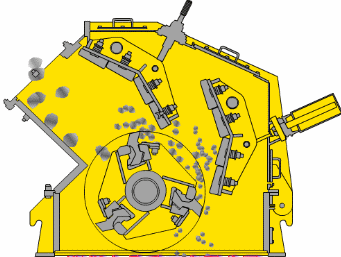

When the impact stone crusher works, driven by the electro motor, the rotor will rotate with high speed, and when the materials go into the action zone of the plate hammer, they will strike and are crushed on the plate of the rotor, and then are crushed again when they are thrown to the impacting device, and then the materials will bounce back from the impact lining board and go to the action zone of the plate hammer and are crushed again. This process will proceed repeatedly, and the materials go into the first, second and third impacting chamber to be crushed until they are crushed to the required granularity, and then discharged from the discharging mouth.
| Model | Specifications （mm） | Feed Opening （mm） | Max.Feeding Size （mm） | Capacity （t/h） | Power （kw） | Dimensions（L×W×H） （mm） |
| PF-1007 | Φ1000×700 | 400×730 | 300 | 30-70 | 4P 37-45 | 2330×1660×2300 |
| PF-1010 | Φ1000×1050 | 400×1080 | 350 | 50-90 | 4P 45-55 | 2370×1700×2390 |
| PF-1210 | Φ1250×1050 | 400×1080 | 350 | 70-130 | 6P 110 | 2680×2160×2800 |
| PF-1214 | Φ1250×1400 | 400×1430 | 350 | 80-180 | 6P 132 | 2650×2460×2800 |
| PF-1315 | Φ1320×1500 | 860×1520 | 500 | 100-280 | 6P 200 | 3180×2720×3120 |
| PF-1320 | Φ1300×2000 | 993×2000 | 500 | 140-380 | 6P 250 | 3220×3100×3120 |
| PF-1520 | Φ1500×2000 | 830×2040 | 700 | 200-550 | 4P 315-400 | 3959×3564×3330 |
| PF-1820 | Φ1800×2000 | 1260×2040 | 800 | 300-800 | 6P 630-710 | 4400×3866×4009 |
