Magnetic Separator

Introduction

Magnetic drum separator is used for wet magnetic separating or dry magnetic separating in manganese ore, magnetite, pyrrhotite, roasted ore, ilmenite and hematite limonite. Moreover, the machine is applied to iron-removal process, like non-metallic minerals, chemicals, building materials, ceramics, cement, abrasive and powder metallurgy. In general, magnetic separator is used with ball mill and crusher.

Main Functions:

1. Coarse crushing can complete coarse crushing and exclude waste rocks. Then the crushed lean iron ore can be sent to next process.

2. Select the unreducted iron ores in the burning process and then send them to roaster again.

3. Magnetic drum separator is used for removing iron in petuntse to improve the quality of ceramic product.

4. Wet high intensity magnetic separator is applied to remove iron in burning coal, foundry sand and refractory.

Four Elements Affecting Separating Results:

1. Movement condition of the materials should be conducive to be captured by magnetic force.

2. Discharging ore system of magnetic separator should be reliable.

3. Magnetic force should be appropriate.

4. Feeding speed should coordinate with partical size of materials.

We promise that we can provide the in-door installation, equipment debugging, technical training services.

If you have any problems about our magnetic drum separator, please leave a message or send an email to: crusher@hxjq.com. Thank you for your supporting!!

Features

Advantages of Wet High Intensity Magnetic Separator

1. High efficiency

2. Highly adaptable

3. No viscidity, featuring clearance

4. Simple structure, high capacity, easy to operate and maintain.

Principle

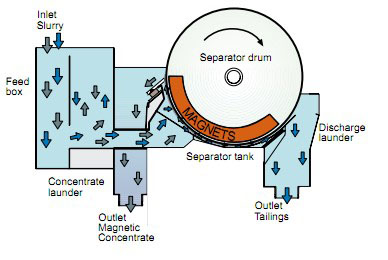

When separating the ores, the swivel rotate in the clockwise direction and ore pulp is fed in by the ore bucket and flows to the inner circle of the swivel along the gap of the yoke. The magnetic media will be magnetized in the magnetic field, and the surface of the magnetic media will form high-gradient magnetic field. The magnetic particles in the ore pulp will be absorbed to the surface of the magnetic media and brought with the rotation of the swivel to the non-magnetic field on top. Then this part of materials will be rushed by the washing water to the concentrate hopper, and the non-magnetic particles will flow through the inner circle to outer circle and into the tailing hopper and then be discharged.

Parameters

Model	Shell diameter （mm）	Shell lenght （mm）	Shell rotation speed（r/min）	Feeding size （mm）	Processing capacoty （t/h）	Power（kw）
CTB6012	600	1200	<35	2-0	10-20	1.5
CTB6018	600	1800	<35	2-0	15-30	2.2
CTB7518	750	1800	<35	2-0	20-45	2.2
CTB9018	900	1800	<35	3-0	40-60	3
CTB9021	900	2100	<35	3-0	45-60	3
CTB9024	900	2400	<28	3-0	45-70	4
CTB1018	1050	1800	<20	3-0	50-75	5.5
CTB1021	1050	2100	<20	3-0	50-100	5.5
CTB1024	1050	2400	<20	3-0	60-120	5.5
CTB1218	1200	1800	<18	3-0	80-140	5.5
CTB1224	1200	2400	<18	3-0	85-180	7.5
CTB1230	1200	3000	<18	3-0	100-180	7.5
CTB1530	1500	3000	<14	3-0	170-280	11
