Spiral Separator

Introduction

Spiral separator is gravity mineral separation equipment suitable for separating non-ferrous metals, ferrous metals and non-metallic minerals and metals minerals with grain size of 0.3--0.02 mm. Spiral chute separator is not as popular as magnetic separators and flotation machine, but it plays an irreplaceable role in ore beneficiation process due to its small footprint, large capacity and other advantages. Today, the spiral chute separator, with other names of spiral concentrator and screw separator, is used in the gravity separation of tungsten, tin, gold, platinum, iron and some rare metals and ores, particularly mines with low-grade.

Low Energy Consumption of Spiral Separator:

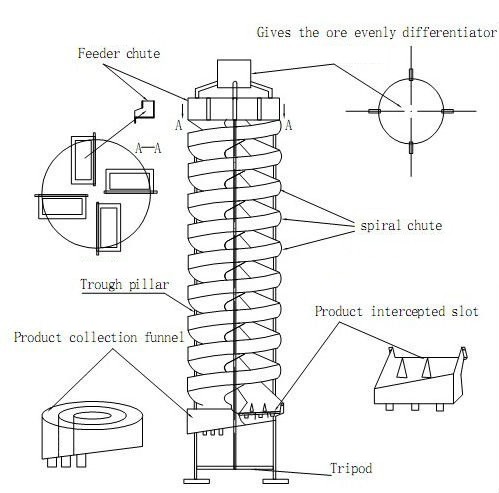

Spiral chute separator production line consists of spiral groove, bracket, feeding chute, ore agglomeration fights and other sections. Spiral chute or spiral concentrator has simple structure, what’s more, it doesn’t have any moving parts, which determines the energy conservation, less consumption, no noise and low cost of the spiral separator or screw separator.

Hongxing Spiral Chute for Ore Beneficiation:

Ore processing spiral chute is product with high technology developed by Hongxing Machinery under years of processing experience. Hongxing spiral chute separator is made of special PVC plastic, so it’s with many advantages including light weight, moisture proof, rust proof, corrosion resistance, no noise, etc.

Features

Advantages of Spiral Chute Separator in Ore Beneficiation:

1. Spiral Separator has no moving parts to consume power.

2. Low requirement on required working conditions, stable grading index.

3. High feeding quality with no need of water, so it saves water.

4. Small floor area and large handling capacity.

Principle

Erect the spiral chute separator, calibrate the perpendicular line and fix it in a proper position with iron structure or wood. Send the mineral sand with the sand pump to the two feeding mouth on the top of the spiral chute, add make-up water to adjust the density of the ore pulp, and the ore pulp will naturally rotationally flow down and produce an inertial centrifugal force in the rotary slant flow. The gravity and the centrifugal force will separate the ores and sand according to the proportion, granularity and shape of the ore sand, and the ore concentrate will flow into the concentrate funnel and be discharged with the pipe and the tailings will flow to the tailing funnel and be discharged to the sand tank with the pipe and drained by the sand pump to complete the whole separation process.

Parameters

Model	Processing capacity （t/h）
DL2000	15-40
DL1500	8-16
LL1200	4-6
LL900	2-3
